Profiled Pavement Marking Tape PL10000
Item No.: Coent 160

 Features:

Highly reflection of light, vibrate sensation, excellent weather fastness, easy to execution, and stereoscopic reflection of light.


Applied Range:
Edge of running lanes;alert lines before enter the densely populated areas;places where need to control the speed like housing district, port, air port, toll station, parking lot; low-speed areas in factories;edge of running lanes in tunnel;dangerous areas on the highway like corner, obstruct.

Description

 Description:

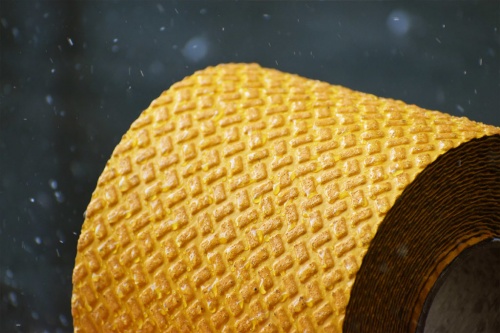

PLYON profiled pavement marking tape use our special craft, it has the excellent ability of traffic control, and reflection of light; using high quality coating binding, bump unit is coated with high refractive index of reflective unit, perfect reflective performance and abrasion resistance; drivers can feel the vibration when drive on the top of the tape. The bottom is the adhesive with excellent binding power and weather fastness. This product has both higher ability of light reflection than normal road reticules, and easy to execution. The service life is long; it’s a new type of traffic sings materials.

Features:
Highly reflection of light, vibrate sensation, excellent weather fastness, easy to execution, and stereoscopic reflection of light.

Applied Range: Edge of running lanes;alert lines before enter the densely populated areas;places where need to control the speed like housing district, port, air port, toll station, parking lot; low-speed areas in factories;edge of running lanes in tunnel;dangerous areas on the highway like corner, obstruct.

Property:
Items Values Units Test methods
PL10001/PL10021 PL10002/PL10022 --- ---
Color white yellow
Thickness at thin spots 1.6 1.6 mm ASTM-D-4325
Thickness at thick spots 2.5 2.5 mm ASTM-D-4325
Reflection coefficient 400 250 mcd·m-2lx-1 ASTM-D-4061
Water resistance pass pass --- GB/T24717-2009
Alkali resistance pass pass --- GB/T24717-2009
Wear resistance 30 30 mg GB/T24717-2009
Adhesive 16 16 N/25mm ASTM-D-1000

Standard Dimension:

● Standard length: 33m, 50m

●Standard width: 10cm, 15cm, 20cm, 40cm, 45cm; Or according to customer's requirement.

● Available color: white, yellow

Application Methods:

Inlay and overlay; Coated with P120 contact primer. The quantity can be 1kg per every 5m²of road tape on new roads. Actual amount depends on the situation of roads.

Shelf life: 24 months in the first package under the condition of 23℃×65%RH.

Important notice:  The information, data and other statements are based on our testing results, the user should determine the suitability of the product for its intended use。
