Reflective Pavement Marking Tape of Engineering Level PL5000
Item No.: Conet 130 Features : Good retro-reflectivity all day long;anti-skid;good flexibility;high tensile;strong weather resistance;easy application;easy removing. Pre-cut symbols and legends—standard and custom. Application: For durable road marks;letters;arrows;graphics;warnings at port, airport, toll station, parking lot etc. |
Description:

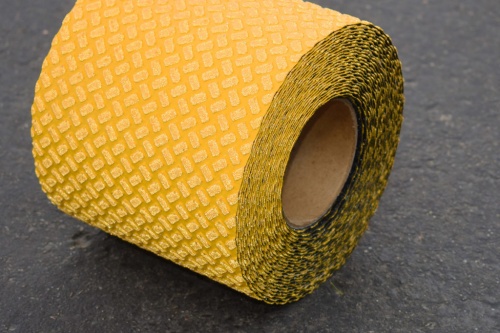

PL5000 reflective pavement marking tape is pre-made with synthetic rubber. It has good flexibility and high tensile strength with the surface coated with 1.5 index glass-beads that has good retro-reflectivity in night. With high performance coatings on the tape, it has a strong anti-friction ability. The bottom is coated with a strong and weather resistant adhesive which improves the adhesion between road and tape, makes the tape firmly stuck on roads. PLYON reflective pavement marking tape has not only good retro-reflectivity, but also has easy application advantage and longer performance life than ordinary road signs.
Property:
|
Nature |
Typical value |
Unit |
Test method |
|
|
PL 5001 |
PL 5002 |
|||
|
Color |
White |
Yellow |
--- |
--- |
|
Thickness |
1.4 |
1.4 |
mm |
GB/T 7125 |
|
Retroreflectivity |
250 |
175 |
mcd/m2 /lux |
GB/T24717 |
|
Water resistance |
Pass |
Pass |
--- |
GB/T24717 |
|
Alkali resistance |
Pass |
Pass |
--- |
GB/T24717 |
|
Anti-friction |
30 |
30 |
mg |
GB/T24717 |
|
Adhesion |
16 |
16 |
N/25mm |
GB/T24717 |
|
Skid resistance |
45 |
45 |
BPN |
GB/T24717 |
Regular specification:
standard length: 33m, 50m
Application methods:
inlay and overlay; coated with P120 contact primer. 1kg contact primer for 3-5m² road tape application on new roads; actual amount depends on the road situation. Refer to the application instructions.
Shelf life:
24 months at normal temperature
