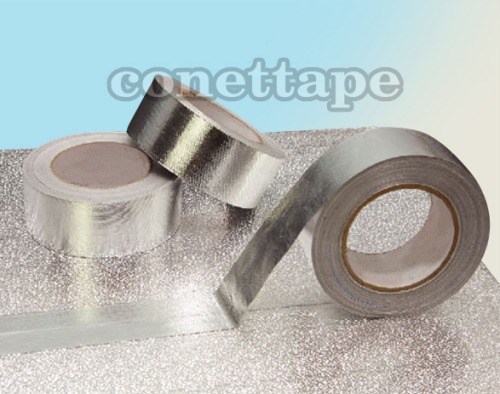

Products > Composite film aluminum foil tape > Foil Glass Cloth HVAC/R Adhesive Tapes
Characteristic: Super high strength[Please refer to 004.jpg to confirm high strength or high adhesive strength.], abrasive resistance, used for applications with special requirements such as like ductwork in shipbuilding industry.
Application: Used in seam sealing and joint bonding of vapor barriers that demand high strength, abrasive resistance and tear resistance.
| Product |
Construction |
Characteristic |
| T-FG701 |
Foil:7µm / Adhesive / 12×12 Mesh/cm2,100 gsm glass cloth / Acrylic Adhesive / Silicone coated release paper. |
Excellent for seam sealing and joint bonding of vapor barriers. |
| T-FG701R |
Foil:7µm / Flame-retardent Adhesive / 12×12 Mesh/cm2,100 gsm glass cloth /Flame-retardent acrylic adhesive / Silicone coated release paper. |
Used for seam sealing and joint bonding of vapor barriers. |
| HT-FG701 |
Foil:7µm / Adhesive / 12×12 Mesh/cm2,100 gsm glass cloth / Synthetic rubber-resin adhesive / Silicone coated release paper. |
Used for seam sealing and joint bonding of vapor barriers. |
| T-FG1801 |
Foil:18µm / Adhesive / 8×8 Mesh/cm2,95 gsm glass cloth / Acrylic Adhesive / Silicone coated release paper. |
Used for seam sealing and joint bonding of vapor barriers. |
| T-FG1801R |
Foil:18µm / Flame-retardent adhesive / 8×8 Mesh/cm2,95 gsm glass cloth / Flame-retardent acrylic adhesive / Silicone coated release paper. |
Used for seam sealing and joint bonding of vapor barriers. |
| HT-FG1801 |
Foil:18µm / Adhesive / 8×8 Mesh/cm2, 95 gsm glass cloth / Synthetic rubber-resin adhesive / Silicone coated release paper. |
Used for seam sealing and joint bonding of vapor barriers. |
※“**”in above products codes means the thickness of aluminum foil. Standard thickness: 7µm and 18µm. The foil thickness and the length and width of the cut roll can be custom-made.
※ All products in this series has silicone coated release paper with polyethylene film.
※ Please refer to data sheets for further technical information.
