Products > Composite film aluminum foil tape > Laminated Backing HVAC/R Adhesive Tapes

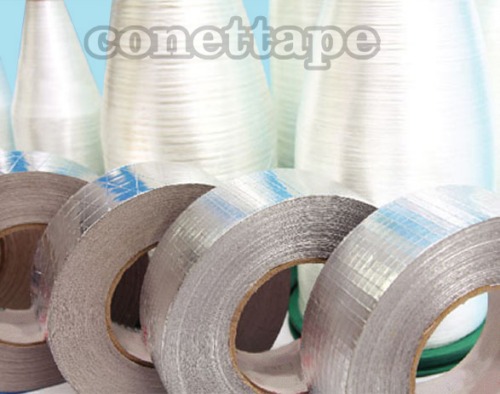

Characteristic: Foil/glass cloth scrim and cloth scrim/paper laminated backing tape with uniform appearance as the facing material. Higher strength than the pure aluminum foil tape series.
Application: Mainly used for seam sealing and joint bonding of vapor barriers that demand high adhesion, with uniform appearance as the insulation facings.
| Product series |
construction |
Characteristic |
| T-FSK71**A |
Foil:7µm / Polyethylene / 8×12/100cm2,3-way scrim / Kraft / Acrylic adhesive / Silicone coated release paper |
High intensity, uniform appearance as the insulation facings, excellent durability. |
| T-FSK71**B |
Foil:7µm / Polyethylene / 12.5×12.5mm,2-way scrim / Kraft / Acrylic adhesive / Silicone coated release paper |
High intensity, uniform appearance of insulation facings, excellent durability. |
| HT-FSK71**A |
Foil:7µm / Polyethylene / 8×12/100cm2,3-way scrim / Kraft / Synthetic rubber-resin adhesive / Silicone coated release paper |
High intensity, uniform appearance of insulation facings, excellent durability. |
| HT-FSK71**B |
Foil:7µm / Polyethylene / 12.5×12.5mm,2-way scrim / Kraft / Synthetic rubber-resin adhesive / Silicone coated release paper |
High intensity, uniform appearance as insulation facings, good durability. |
| T-FSV1808B |
Foil:18µm / Polyethylene / 5×5mm,2-way scrim /Acrylic adhesive / Silicone coated release paper |
Soft and easy to stick, suitable for the sealing of expansion joints. |
| T-ASJ7580A |
80gsm white Kraft / Adhesive / 20x16/100cm2,3-way scrim / Foil:7µm / Acrylic adhesive / Silicone coated release paper |
Applicable for all service jacket of insulation pipe. |
※ “**”in above products codes means the weight of Kraft. Standard weight: 50 gsm and 60 gsm. The foil thickness, Kraft weight and the length and width of the cut roll can be custom-made.
※ All products in this series has silicone coated release paper with polyethylene film.
※ Please refer to data sheets for further technical information.
