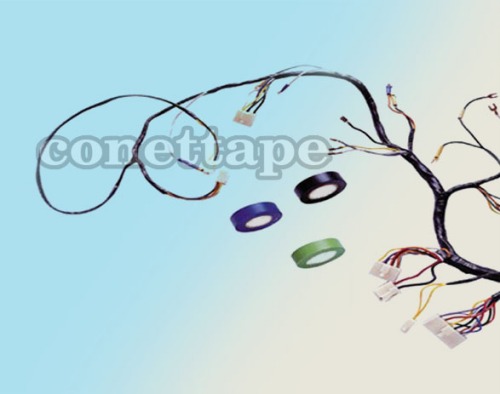

PVC Wire Harness Tape
Item No.: conet-41
Description: UB is a thin premium grade plasticized polyvinyl chloride film coated with an aggressive rubber resin adhesive with good characteristics. It is highly conformable and unaffected by most chemicals and moisture. Meet ROHS requirements, It could prevent the gradually harm to body , for example lead and cadmium in the common tape in order to protect the safety of user.
|
Features and Application Range
Technical Data:
|
Properties |
unit |
Specification |
Test Method |
||||
|
UB110 |
UB130 |
UB150 |
UB165 |
UB180 |
|||
|
Total Thickness |
mm |
0.110 |
0.130 |
0.150 |
0.165 |
0.180 |
ASTM D1000 |
|
Width |
mm |
19.0 |
19.0 |
19.0 |
19.0 |
19.0 |
ASTM D1000 |
|
Tensile Strength |
N/cm |
18 |
20 |
25 |
28 |
30 |
ASTM D1000 |
|
Elongation |
% |
190 |
200 |
200 |
200 |
200 |
ASTM D1000 |
|
Adhesion Strength ·to steel ·to Backing |
N/cm N/cm |
1.5 1.5 |
1.5 1.5 |
1.5 1.5 |
1.5 1.5 |
1.5 1.5 |
ASTM D1000 |
|
Dielectric breakdown |
V |
600 |
600 |
600 |
600 |
600 |
UL510 |
|
Temperature Resistance |
°C |
80 |
80 |
80 |
80 |
80 |
ASTM D1000 |
|
Flame Resistance |
s |
2 |
2 |
2 |
2 |
2 |
ASTM D1000 |
|
Content of Heavy Metal ·Lead, Cadmium ·Mercury, Chromium(â…¥) ·Polybrominated bipheyls Polybrominated bipheyl ethers |
ppm ppm ppm |
30 10 10 |
30 10 10 |
30 10 10 |
30 10 10 |
30 10 10 |
US EPA3052 US EPA3060A US EPA3540C |
It is specifically designed for wire harness application. wrapped wires with a
half-lap is bester, the last layer should be no tension to prevent flagging.
