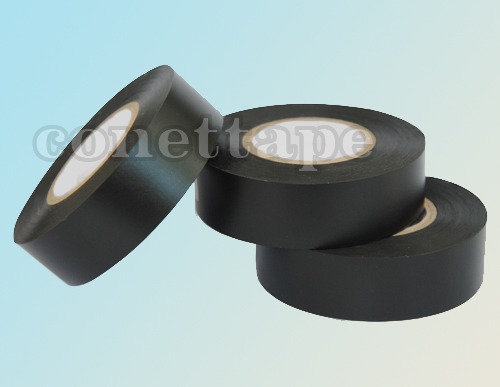

PVC Electrical Tape
Item No.: Conet-11 Thickness: 0.11mm-0.20mm Product width:＜19mm≤1250mm Standard Size: 30mmX33m(The width of the mother tape roll is 1250 mm and the width and length of the smaller rolls can be customized) Color: red,yellow,green,blue,white,black,gray Temperature grade: +80 Centi-degree Electrical features: Used below 600V |
Application Range
Insulating wrapping of electric wires and cables
Marking of electrical wire and cables
Can be used indoors and outdoors
Know More About PVC Electrical Tape
PVC electrical tape composed of soft film and rubber based PSA is characterized by excellent insulation, good flame retardant and excellent resistance to voltage and low temperatur, it is used for insulation protection of electrical wires and harness in automobile industry. PET tape(polyester tape) composed of PET film and solvent based PSA is characterized by good tensile strength and resistance to high temperature. It is used for various packing and wrapping of transformer coils.
|
Properties
|
unit
|
Typical data
|
Test Method
|
|||||
|
110CR
|
130CR
|
150CR
|
165CR
|
180CR
|
200CR
|
|||
|
Total Thickness
|
mm
|
0.110
|
0.130
|
0.150
|
0.165
|
0.180
|
0.200
|
ATSM D1000
|
|
Width
|
mm
|
>19.0
|
>19.0
|
>19.0
|
>19.0
|
>19.0
|
>19.0
|
ATSM D1000
|
|
Tensile Strength
|
N/cm
|
18
|
20
|
22
|
25
|
28
|
32
|
ATSM D1000
|
|
Elongation
|
%
|
200
|
200
|
200
|
200
|
200
|
200
|
ATSM D1000
|
|
Adhesion Strength
|
|
|
|
|
|
|
|
ATSM D1000
|
|
to steel
|
N/cm
|
1.5
|
1.5
|
1.5
|
1.5
|
1.5
|
1.5
|
|
|
to Backing
|
N/cm
|
1.5
|
1.5
|
1.5
|
1.5
|
1.5
|
1.5
|
|
|
Dielectric breakdown
|
V
|
600
|
600
|
600
|
600
|
600
|
600
|
UL510
|
|
Flame Resistance
|
s
|
2
|
2
|
2
|
2
|
2
|
2
|
ATSM D1000
|
|
Temperature Resistance
|
℃
|
80
|
80
|
80
|
80
|
80
|
80
|
ATSM D1000
|
